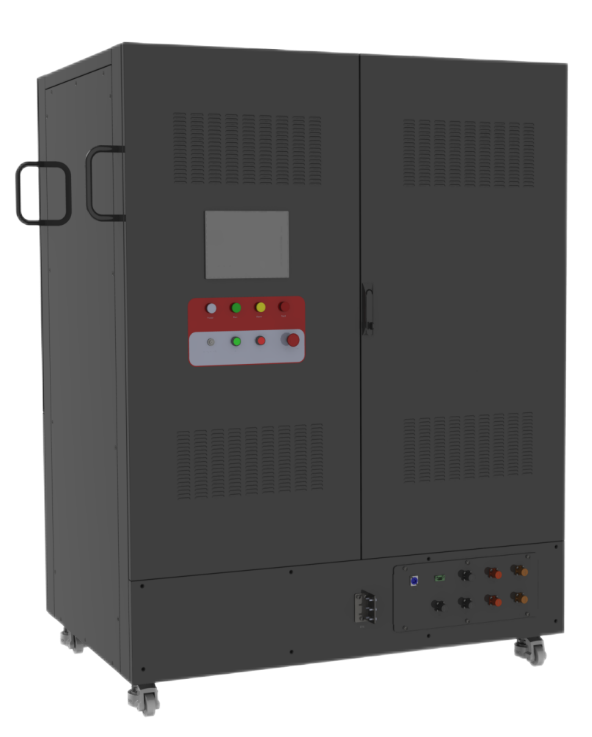

DLC data center level load bank

The product is composed of cabinets, heaters, touch screens, electronic components of various valves, etc. The front and rear doors are hinged design, the left, right and upper cover plates are bolted, and the bottom casters are designed. All wet components are made of stainless steel and include load elements, piping, wet sensors and valves.
Contact Us

Product Details

The product is composed of cabinets, heaters, touch screens, electronic components of various valves, etc. The front and rear doors are hinged design, the left, right and upper cover plates are bolted, and the bottom casters are designed. All wet components are made of stainless steel and include load elements, piping, wet sensors and valves. The load system is a completely independent unit, including all resistive load elements, pressure sensors, load controllers, load element branch circuits, fuse protection, main load bus and terminal blocks, valves and accessories, control power supply, fault detection system. The load element is submersible, tubular construction, stainless steel sheath, chrome alloy conductor, screw-in mounting. Load control: The branch is equipped with a contactor, the maximum load of each step is 50KW, and the total power is 500KW.



Features:

  • SS304 pipes, high reliability.
  • 10 inch HMI touch screen, easy to  read heating power, flow rate, pressure and liquid level.
  • Integrated group control function, up to 15 units.





Application:

  • Simulate server heating and can be used for testing the heat exchange performance of liquid cooling systems in data centers.







Product name Water-cooled Load Bank
Model SP-AC415-500KW
Input voltage 3P AC400~480V 50&60Hz
Operation mode Continuous operation
Liquid Ethylene glycol mixture/25% PG
Temperature rise requirements 100GPM@500KW,△t=19.8℃
200GPM@500KW,△t=9.9℃
Operating pressure 75PSI
Testing  pressure 225PSI
liquid interface 4 '' Flange interface
Heating capacity Total heating power 500KW,heating step: 50KW
Power interface Clam-lock,400A
Control system & Display screen PLC & 10″ HMI
Communication protocols RS485, RJ45 MODBUS
Touchscreen display Voltage, power, temperature, flow, pressure
Protection mechanisms High temperature, high pressure, liquid level alarm
Ways to protect Turn off the input power
Noise level ＜60dB（A）
Working environment -30～60℃,0～85%RH (No condensation)
Storage environment -30～60℃,0～90％RH (No condensation)
Size (W*D*H) 1528mm*1143mm*1991mm
Dry Weight 970KG
Exterior color RAL9005
