QD PRODUCT SERIES

BEEHE QD PRODUCT SERIES
FOR COLDPLATE/MANIFOLD/RACK

Product Details

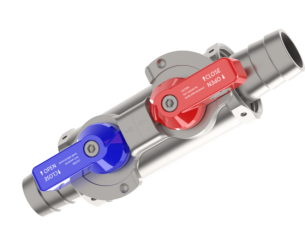

BEEHE QD PRODUCT SERIES

FOR COLDPLATE/MANIFOLD/RACK

PRODUCT FEATURES：

BEEHE QD sealing material list：

Sealing-ring material	Temperature Range（℃）	Applicable Fluid
EPDM （standard configuration）	-40 ~ +120	Deionized water, purified water, water ethylene glycol, water propylene glycol, fluoride solution.
FVMQ	-55 ~ +155	Deionized water, purified water, water ethylene glycol, water propylene glycol, fluorinated liquid, oils.
NBR	-40 ~ +80	Deionized water, purified water, water ethylene glycol, water propylene glycol, oil.
HNBR	-40 ~ +150	Deionized water, purified water, water ethylene glycol, water propylene glycol, fluorinated liquid, oils.
FKM	-20~+200	Deionized water, purified water, water ethylene glycol, water propylene glycol, fluoride solution.

BEEHE QD SERIES TECHNICAL PARAMETERS：

Model	UQD/UQDB02	UQD/UQDB04	UQD/UQDB06	UQD/UQDB08	FND25	FND40
Nominal diameter	02 (1/8′′)	04 (1/4′)	06 (3/8′′)	08 (1/2′′)	25 (1′′)	40 (2′′)
Material of body	SUS316				SUS304
O-ring material	EPDM
Maximum operating pressure	100 PSI				150 PSI
Minimum burst pressure	300 PSI				300 PSI
Leakage rate	1ⅹ10-3@0.3Mpa
Maximum flow rate	8.5 lpm	18 lpm	46 lpm	74 lpm	260 lpm	1200 lpm
Applicable liquid	PG25/DI-Water
Operating temperature range	-15℃~100℃
Minimum Cv	0.58	1.24	2.85	3.93	-	-
Maximum fluid loss per couple/decouple cycle at 0 psi	≤0.02ml	≤0.025ml	≤0.035ml	≤0.07ml	≤4.2ml	≤7.8ml
Connect-disconnect life	5000 times
