Rack mounted manual and blind insertion Manifold

Rack mounted manifold, arranged on one or both sides of the rear of the server cabinet, connects the CDU and the server cold plate, and is used for multi section flow distribution of servers.
Contact Us

Product Details

Rack mounted manifold, arranged on one or both sides of the rear of the server cabinet, connects the CDU and the server cold plate, and is used for multi section flow distribution of servers.



Features :



  • SUS304 stainless steel, with strong pressure resistance and high reliability
  • Flow uniformity ≤ 10%
  • Optional manual and blind insertion architectures
  • Integrated ear hook for easy installation
  • Integrated automatic exhaust valve and vent valve
  • Red and blue color differentiation




Application:



  • EIA liquid cooled server cabinet
  • OCP ORV3 liquid cooled server cabinet





Project Description Parameters
Main pipe Type Square tube
Material quality SUS304

Main pipeline interface

 Chuck/cone joint/quick coupling/quick coupling ball valve
Branch interface Inner thread connector
Exhaust valve SUS304 automatic exhaust valve
Relief valve Ball valve/quick connector

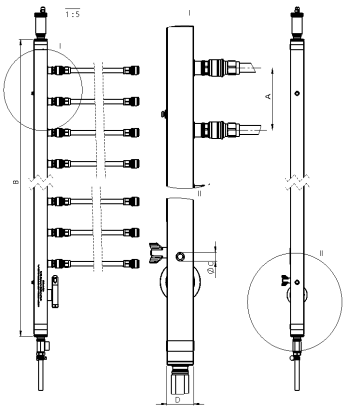

A U 1/2/4
B mm Customizable
C mm 12/16/19.5
D mm 25/30/40/50/80
Branch pipeline Line type Single ear infinite clamp/buckle
Pipe materials  EPDM/PTFE
Interface type Quick connector male/quick connector female
Length mm Customizable
Quick connector Diameter mm 2/4/6/8
Quick connect   UQD/UQDB
