Heat exchanger

The heat exchanger mainly consists of a sheet metal shell, a heat exchange core, an internal circulation fan, an external circulation fan, and a control board.

Contact Us

Product Details

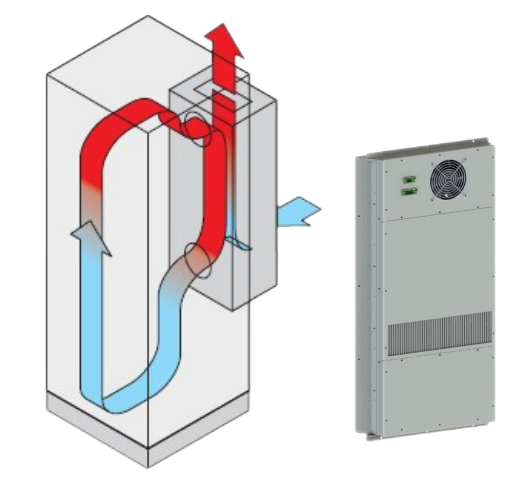

The heat exchanger mainly consists of a sheet metal shell, a heat exchange core, an internal circulation fan, an external circulation fan, and a control board. During the operation of the heat exchanger, under the push of the internal and external circulation fans, the hot air on the indoor side and the cold air on the outdoor side enter the heat exchange core from the upper and lower parts of the heat exchanger respectively, and conduct sufficient heat exchange inside the core. After cooling, the indoor air returns to the cabinet from the lower air outlet to meet the cooling needs of the equipment. The specially designed core and overall structure not only ensure sufficient heat exchange capacity, but also completely isolate the indoor and outdoor air, effectively avoiding the impact of adverse external environments on the environment inside the cabinet.

Key Features:

Customized cooling capacity of 40WK-250W/K
Adopting internationally renowned brand fans to ensure a ten-year service life of the refrigeration system
Fan variable frequency regulation, can automatically adjust the cooling capacity according to the load
Integrated design, compact structure

Application:

Battery cabinet/control cabinet
Closed space cooling

Item	Description	HX04-D2DSP	HX06-D2DSP	HX08-D2DSP	HX12-D2DSP	HX15-D2DSP	HX25-D2DSP
Parameters	Rated cooling power（W/K)	40	60	80	120	150	250
	Rated power（W）	35	55	110	130	380	760
	Rated current (A)	0.73	1.15	2.29	2.71	1.83	3.5
	Noise dB(A)	≤46	≤50	≤55	≤58	≤68	≤70
	Heating power (W)	Optional
	IP grade	IP55
	Operating ambient temperature range (℃)	-40~+65℃
	Power spec.	DC48V±15%				AC220V±10%
	Control mode	单片机控制器
	Size HWD（mm）	800×350×94	850×350×94	850×350×144	900×435×144	1204×404×230	1454×644×230
	Weight（kg）	7	8	10	14	50	65
