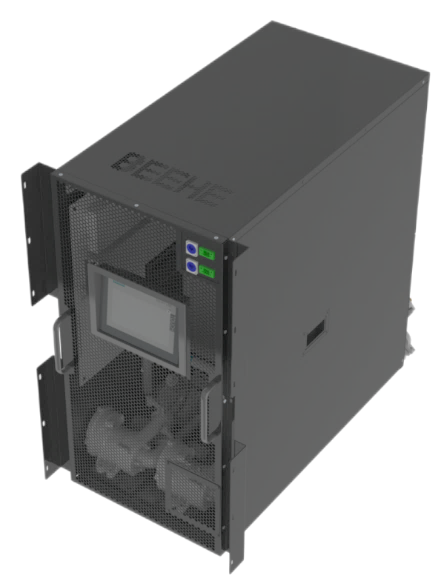

IN RACK L2A CDU SERIES

BEEHE IN RACK L2A CDU SERIES
FOR GENERIC SERVERS AND AI SERVERS
NVIDIA MGX RACKS

Product Details

BEEHE IN RACK L2A CDU SERIES

FOR GENERIC SERVERS AND AI SERVERS

NVIDIA MGX RACKS

PRODUCT FEATURES：

Supports ASHRAE A2 air cooling
4U/10U/20U height, meet EIA and ORV3 racks liquid cooling requirement
Constant pressure difference, constant flow, constant temperature output control mode
Small size, strong heat transfer capacity, high heat transfer efficiency
Adaptive end load changes, automatic adjustment of water and air volume, energy saving and consumption reduction
Special air-liquid separation design, quickly achieving the first liquid injection and air exhaust of the system, eliminating water pump cavitation
All SUS304 pipeline, wetted material compatible with PG25/DI water
Redundant pump, power supply, and controlling sensor, safe and reliable
The three-level alarm mechanism helps O&M personnel quickly locate system faults
Under fault switching condition, with slight fluctuations in flow rate, temperature, and pressure difference, smoother temperature control

BEEHE IN RACK L2A CDU TECHNICAL PARAMETERS：

Model	IR6	IR15	IR24
Cooling object	Intel/AMD CPU	Intel/AMD CPU	NVIDIA MGX
Applicable rack type	EIA	EIA	EIA&ORV3
Rated cooling capacity	6kW	15kW	24KW
Coolant	PG25	PG25	PG25
Approach temperature	15℃	15℃	10℃
Primary side Air temp.(in/out)	25℃/43℃	25℃/45℃	35℃/50.5℃
Secondary side liquid temp.(out/in)	40℃/54.8℃	40℃/49℃	45℃/55.1℃
Secondary side rated flow rate	6LPM	25LPM	30LPM
Rated air flow	690CFM	1342CFM	2820CFM
Flow range	40-100%	40-100%	10-100%
Available Pressure head	13.5PSI	29PSI	26PSI
Power Supply	AC90-264V 50/60HZ	AC90-264V 50/60HZ	AC90-264V 50/60HZ
Power consumption	≤0.3kW	≤3.1kW	≤4.8kW
Power quantity	1	1	1+1
Pump quantity	1+1	1+1	1+1
Fan quantity	2	5	6+1
Secondary side filter	100μm	50μm	50μm
Communication	Modbus RTU&TCP/IP	Modbus RTU&TCP/IP	Modbus RTU&TCP/IP & SNMP
Automatic liquid refill	No	Yes	Yes
Weight	103.6Ibs	216.1Ibs	368.2Ibs
Dimensions (W x D x H)	445x860x177.3mm	445x850x444.5mm	445x850x889mm
